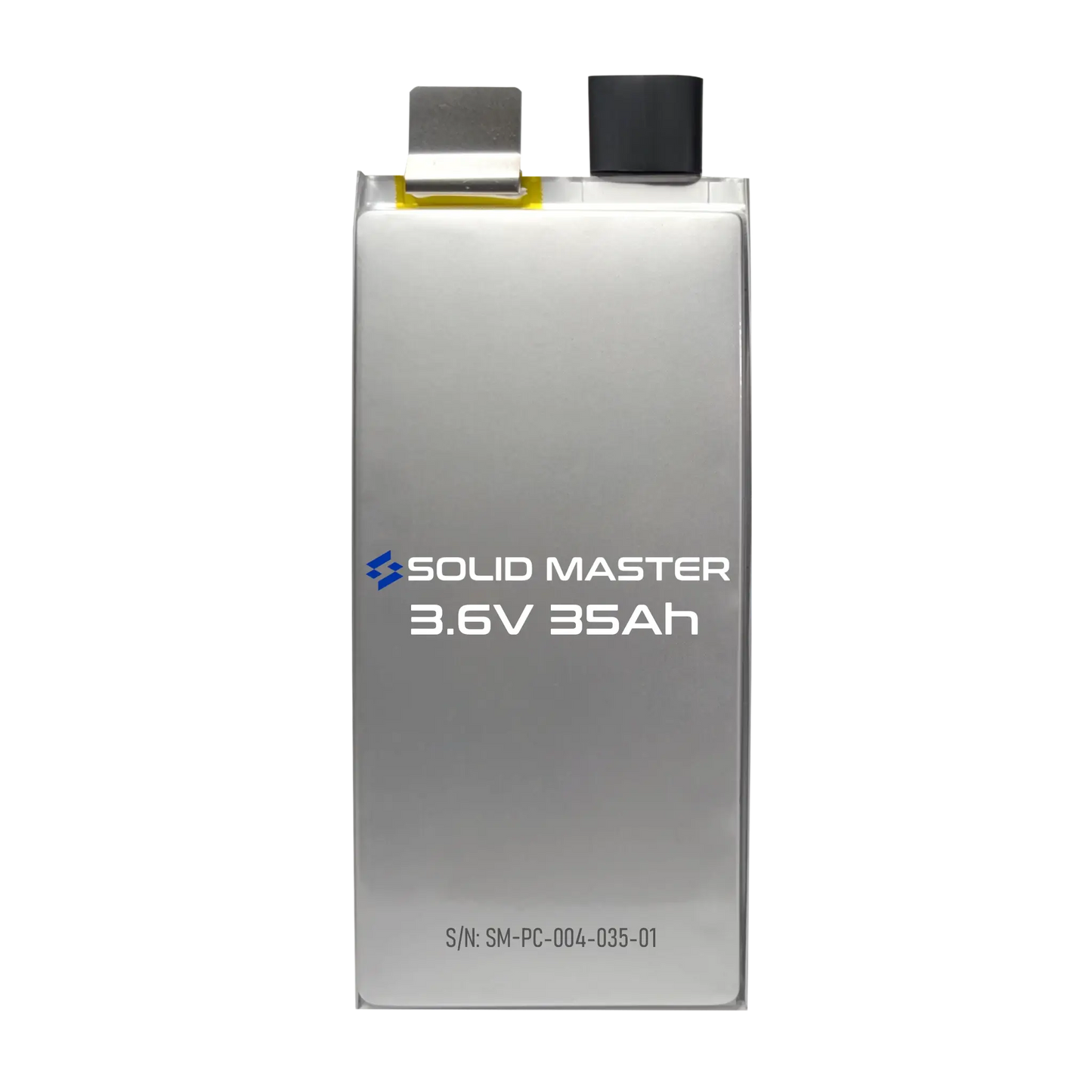

3.6V 35Ah - Solid State Battery - 7C Pouch Cell
3.6V 35Ah - Solid State Battery - 7C Pouch Cell
Regular price
$999.99 USD
Regular price
Sale price
$999.99 USD
Unit price
/
per
Couldn't load pickup availability
This 3.6V 35Ah solid state battery pouch cell offers up to 7C discharge rate, perfect for providing power to compact, high-powered devices. Its advanced solid state design ensures superior safety compared to standard lithium ion batteries, while its high energy density allows for optimal performance, light weight and space-saving capabilities.
| Battery Type | Solid State Lithium-ion |
| Battery Case | Aluminum Polymer Pouch |
| Voltage | 3.6V |
| Capacity | 35Ah |
| Energy Stored | ~126Wh |
| Energy Density | ~326Wh/kg |
| Weight | 0.85 lbs. (386g ± 5g) |
| Dimensions (L x W x H) |
7.5" x 3.5" x 0.38" (±0.02") |
| Discharge / Charge Connector | Tab |
| Operating Voltage | 2.6V - 4.2V |
| Standard Discharge | 1C |
| Max Constant Discharge | 3C |
| Peak Discharge | 7C (30 seconds) |
| Standard Charging | 0.5C @ 14A |
| Rapid Charging | 1.0C @ 28A |
| Max Charging | 1.0C @ 28A |
| Cycle Life |
~150 @ 7C discharge ~300 @ 3C discharge ~600 @ 0.5C discharge |
| Operating Temperatures | -20°C to 55°C |
| Storage Humidity | 60±25%R.H |
SKU:SM-PC-004-035-01
